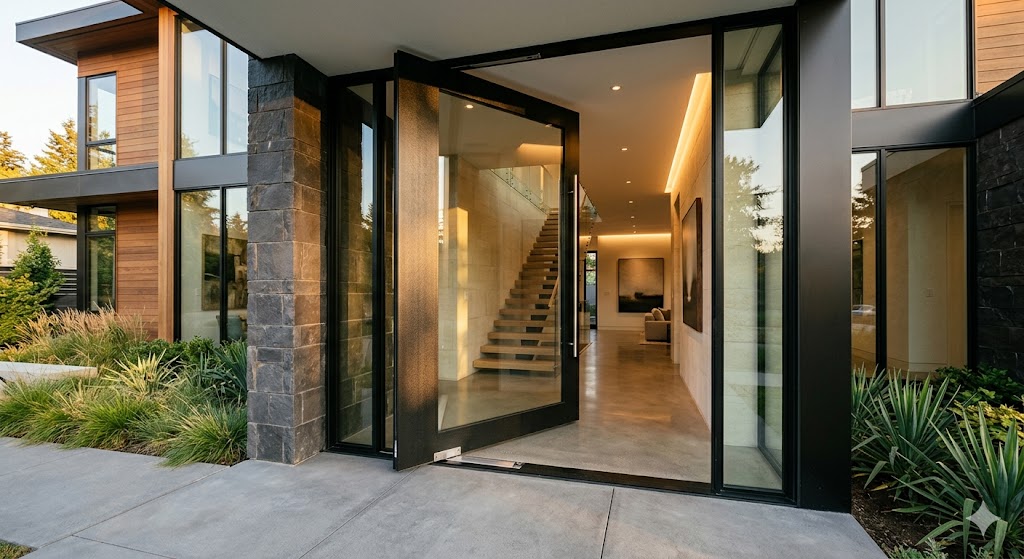

Pivot doors are one of the defining details in high-end residential and boutique hospitality projects. They look effortless - a massive panel rotating on a near-invisible axis. Getting them right takes more coordination than most teams expect.
A pivot door is an entrance door that turns on a vertical axis set into the floor and the head instead of on side hinges, which lets a leaf around 7 ft wide and 10 ft or more tall open with one hand. In European aluminum I source pivot doors on three systems: the Reynaers MasterLine 8, the Aluprof MB-86 and the Cortizo Millennium Plus Pivot.
Here's what you need to know before specifying one: sizes, the system choice, cost, structure and the threshold.
What Is a Pivot Door?
A standard door hangs on side-mounted hinges. A pivot door rotates on a vertical axis set at floor and head level - either centered, offset, or close to one edge.
What makes them different:
- No visible hinges - the pivot hardware is concealed in the floor and head
- Bi-directional swing - opens in and out
- Oversized panels - widths of 48" to 72", heights beyond 120", panels up to 600+ lbs
- Frameless appearance - the door can sit flush with the surrounding wall
Sizing: What's Realistic
| Configuration | Width | Height | Typical Weight |
|---|---|---|---|
| Single panel, glass | 36"-48" | 84"-108" | 250-400 lbs |
| Single panel, glass | 48"-60" | 96"-120" | 350-550 lbs |
| Oversized single panel | 60"-72" | 108"-144" | 500-800 lbs |
| Solid panel (wood/metal core) | 36"-60" | 84"-120" | 200-500 lbs |
Most luxury residential projects land in the 48"W x 108"H to 60"W x 120"H range - big enough to make a statement, manageable enough for standard hardware. Panels above 72" wide or 600 lbs need heavy-duty pivot systems and structural engineering review.
European aluminum pivot systems are built as standard products for this size range, which keeps the engineering and the hardware matched to the leaf.
Which Pivot Door System Is Best for a Luxury Home?
It depends on the leaf size and the look. These are the published limits of the three aluminum pivot systems I quote:
| System | Max leaf size | Max leaf weight | Best for |
|---|---|---|---|
| Reynaers MasterLine 8, pivot variant | up to about 13 ft tall (4,000 mm) | up to 1,100 lbs (500 kg) | The largest and heaviest leaves |
| Cortizo Millennium Plus Pivot | 6 ft 11 in x 9 ft 10 in (2,100 x 3,000 mm) | 353 lbs (160 kg) | A flush, hinge-free face; panelled or glazed leaf; U-factor from 0.14 (Ud 0.77) |
| Aluprof MB-86, pivot door | per configuration | per configuration | Matching an MB-86 window package; doors rated to water tightness class E4500 |
The Cortizo door runs its axis 15.75 in (400 mm) in from the jamb, which is what makes a 7 ft leaf manageable by hand. If the door is a standard size and the pivot action is not the point, a conventional hinged aluminum entrance door costs less and takes the same finishes. U-factors on European data sheets are metric - convert any figure with my U-value to U-factor converter.
Pivot Hardware: The Two Names You Will Hear
FritsJurgens (Netherlands)
The industry standard. Concealed hydraulic pivot hardware that creates the "floating" swing feel.
- System M+ - up to 550 lbs, standard luxury residential
- System One - up to 1,100 lbs, oversized panels
- System 3 - up to 550 lbs, self-closing for code requirements
Steelaxis by Portapivot (Belgium)
A newer competitor with integrated self-closing. Increasingly appearing in U.S. luxury residential.
- Steelaxis 150 - up to 330 lbs, mid-range residential
- Steelaxis 360 - up to 792 lbs, large exterior pivot doors
Center vs. Offset Pivot
Some systems, such as the Cortizo Millennium Plus Pivot, ship with their own integrated pivot hardware, so the choice of brand comes with the system. I usually recommend an offset pivot (rotation axis shifted toward one edge). It gives you the visual drama of a pivot system with a more practical swing arc for everyday use. Center-pivot looks dramatic but requires clearance on both sides.
How Much Does a Luxury Pivot Door Cost?
A European aluminum pivot door delivered to a US site typically runs from about $12,000 for a 42 x 96 in double-glazed door to $30,000 and more for an oversized triple-glazed leaf. Pivot doors are priced per door from drawings, not from my estimator's price curve - size, glass, finish and hardware all move the number.
| Configuration | European aluminum (DDP to site) |
|---|---|
| 42"W x 96"H, double-glazed | $12,000-$16,000 |
| 48"W x 108"H, triple-glazed | $16,000-$22,000 |
| 60"W x 120"H, triple-glazed | $22,000-$30,000 |
| 72"W x 132"H, oversized | $30,000-$45,000 |
To compare against a US custom pivot door, put a dated installed quote for the same size, glass and hardware next to the European landed price plus installation - see project-specific import costs. I match the system and fabricator to each project rather than working from one price list.
For details on how the DDP import process works, see the full guide. For a pivot door priced on your actual opening, send me the drawings - a budget number comes back the same or next working day.
Structural Considerations
The floor pivot carries the full weight of the door as a point load into roughly a 3" x 3" area. This needs to be addressed during design, not during installation.
- Wood frame: Solid blocking below the subfloor at the pivot location - minimum 4x solid or engineered LVL. The floor pivot housing recesses 2"-3" into the subfloor, so coordinate with the framer early.
- Concrete slab: Minimum 4" thickness for standard hardware, 6"+ for doors over 500 lbs. If there's radiant heating, coordinate pivot anchor location to avoid tubing.
- Post-tension slab: GPR scan required before drilling. Epoxy anchors only.
The top pivot carries lateral forces - a standard 4x or 6x header handles most residential doors under 600 lbs.

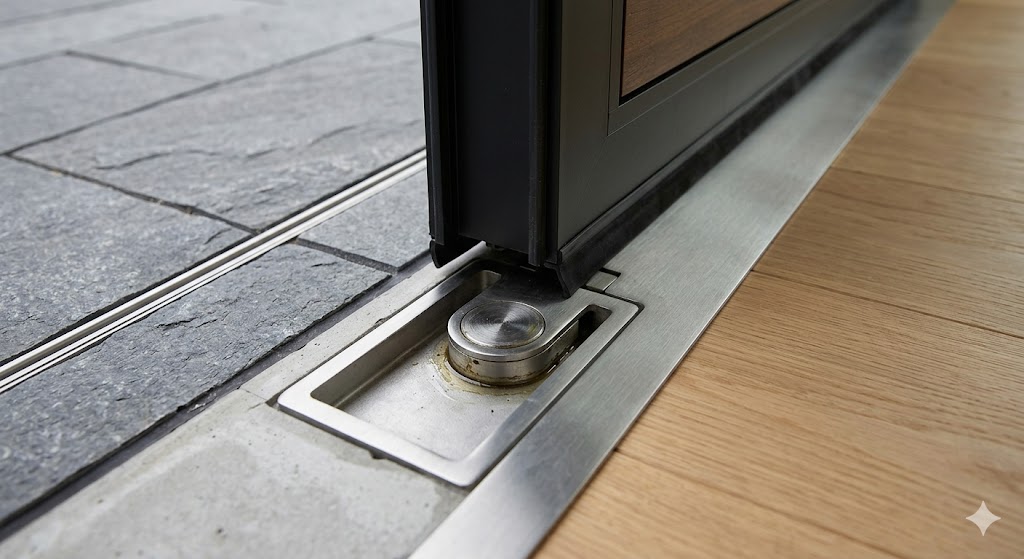

Weatherproofing: The Hard Part
Pivot doors are tough to seal. The bi-directional swing means no compression seal at the strike side, and the bottom follows an arc during rotation.
European pivot systems handle this with automatic drop-seals (deploy when closed, retract when opening), recessed threshold channels with drainage, and triple-gasket perimeter systems. But even with all that:
- Exposed facades (coastal, high-rise) need a recessed entry or canopy
- ADA thresholds (1/2" max height) need to be confirmed against the selected threshold profile before ordering
Common Mistakes
- Undersized rough opening - confirm dimensions before framing, not after
- Floor structure not engineered for point load - the most common field problem
- Threshold treated as an afterthought - it's an engineered component, not trim
- Wrong pivot offset - confirm the swing arc against the floor plan before committing
- Glazing not matched to energy model - confirm against the energy model, especially in climate zones 4+. See the triple vs. double glazing comparison
FAQ
How much does a pivot door cost? A European aluminum pivot door delivered DDP to a US site typically costs about $12,000 to $16,000 for a 42 x 96 in double-glazed door and $22,000 to $30,000 for a 60 x 120 in triple-glazed one. Oversized leaves run higher. Each door is quoted from drawings, because size, glass, finish and hardware all move the price.
What is the best pivot door system for a luxury home? For the biggest leaves, the Reynaers MasterLine 8 pivot variant carries up to 1,100 lbs at about 13 ft tall. For a flush, hinge-free entrance up to 6 ft 11 in x 9 ft 10 in, the Cortizo Millennium Plus Pivot is purpose-built. The Aluprof MB-86 pivot door suits a house already specified on MB-86 windows.
How long does it take to receive a European pivot door? For aluminum, plan within the roughly 9-16 week range from approved shop drawings to delivery on site, toward its upper end, including production and ocean freight; the confirmed schedule comes with the order. See European window lead times and the full DDP import process.
Are pivot doors available in steel-look finishes? Yes. All three aluminum pivot systems I source take matte black and dark powder-coat finishes that pair well with steel-look window profiles elsewhere on the facade, giving you a cohesive industrial aesthetic across the entire envelope.
Can pivot doors meet NAFS and NFRC requirements? NAFS test data can be coordinated for most configurations, and NFRC-rated units are available on selected systems where the permit needs them. Confirm the requirement for your door size with your building department before ordering - see NFRC and NAFS for European windows.
