MasterLine 8
Flagship thermal performance for demanding projects.
Functional - Application Example
Overview
What makes the MasterLine 8
stand out.
Reynaers MasterLine 8 is one of the most complete aluminum window and door platforms on the market. Insulation options include Standard, HI and HI+, with design lines including Functional, Deco and Renaissance, plus specialized variants for hidden vents, noise reduction (SoftTone), pivots, fire resistance, and security. The Functional window combines a 77 mm frame depth with vent glazing up to 72 mm and sash weights to 200 kg - with entrance doors handling up to 250 kg and pivot doors up to 500 kg at 4 meters tall.
Learn more about thermally broken aluminum technology or compare European aluminum system providers.
Key Highlights
- Four insulation tiers: Standard (Uf 2.0), HI (1.7), HI+ (1.3), Functional (1.3)
- Hidden Vent variant: operable looks fixed from outside, 80 mm sightline
- Pivot window and pivot door variants up to 500 kg and 4,000 mm
- Passive House certified panel door variant (Ud 0.8)
- Fireproof (EI 30) and burglarproof (RC2, RC3) variants
- Deco and Renaissance design lines for traditional aesthetics
Ideal For
Custom homes with aggressive energy targets, Passive House and near-zero-energy builds, and architect-specified residential projects where thermal performance and slim aluminum aesthetics both matter.
Consider an Alternative When
If your budget is tight and you don't need passive-house-level performance, look at the Aluprof MB-79N - similar frame depth, strong thermal values, and significantly lower cost. If you want the absolute best insulation Reynaers offers, step up to the MasterLine 10.
Technical specifications
Frame Depth
3.03" (77 mm)
Sightline (frame-vent)
3.82" (97 mm)
U-Factor (best, HI+)
0.16 (Uw 0.88)
U-Factor (HI, triple)
0.18 (Uw 1.02)
Max Glazing
2.83" (72 mm) - Functional
Air Infiltration
Class 4 (EN 12207)
Water Resistance
E900 / E1200 (Hidden Vent)
Wind Load
Class C5 (2,000 Pa)
Max Sash Height
9' 2" (2,800 mm)
Max Sash Weight
441 lbs (200 kg) window / 551 lbs (250 kg) door
Acoustics
Up to 49 dB (Hidden Vent)
Variants
Standard, HI, HI+, Functional, Deco, Renaissance, Hidden Vent
The provider overview lists glazing up to 72 mm in the Functional vent, not the Hidden Vent. Glazing limits depend on the selected frame and vent profiles; confirm the current configuration per order.
Technical references
Projects using this system
Photographed on site.

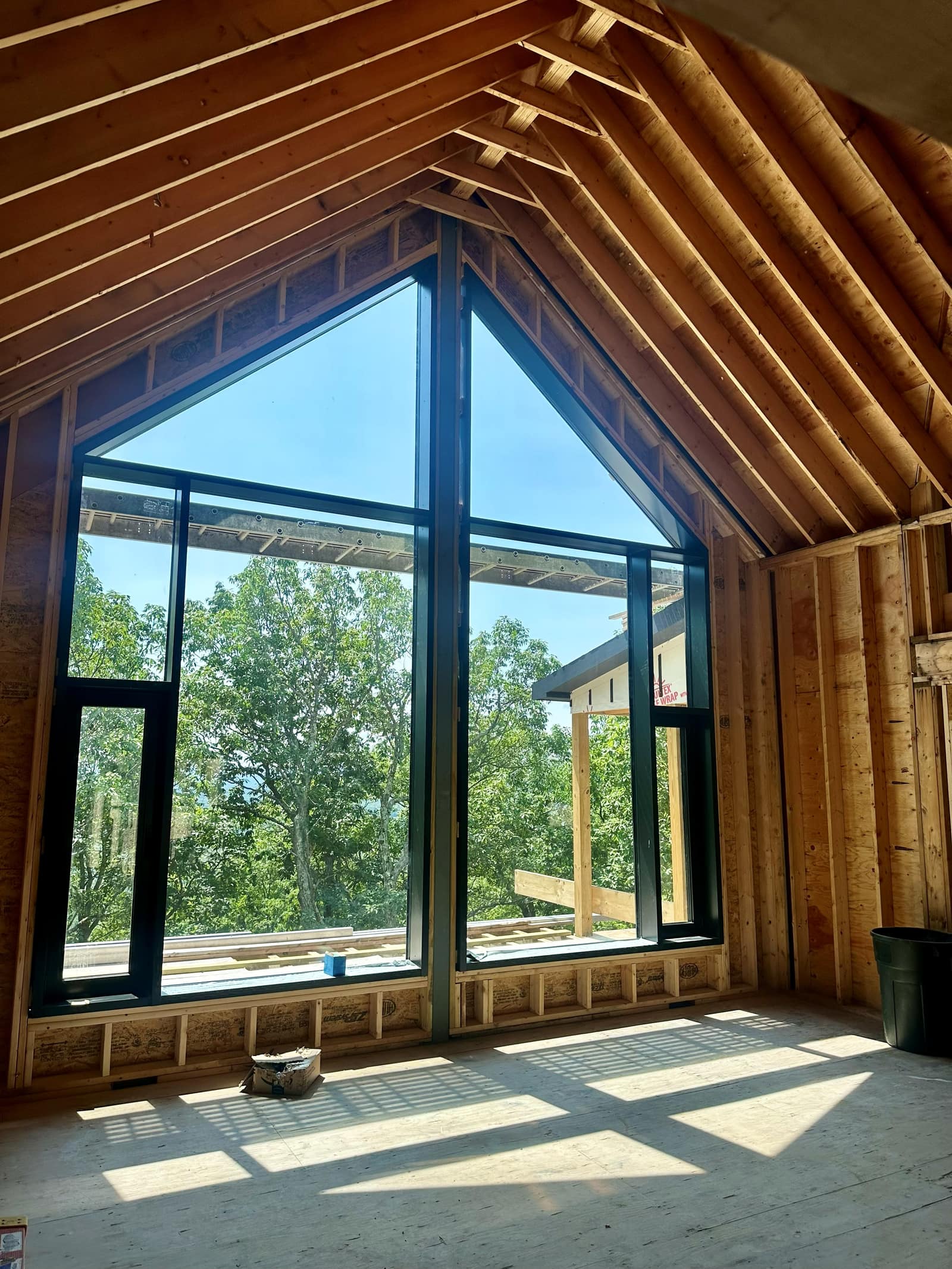

MasterLine 8 installed on real builds - photographed during construction, before the cladding went on.
