COR Vision Plus
Four-meter leaves. 94 percent glass.
Application Example
Selecting this family for a Canadian project
For aluminum, compare the thermal break, glass, sightlines and the limits of the selected frame and opening configuration. Provider catalogue figures describe particular configurations. Confirm the whole-unit result, rating method and available documents for your sizes with your local designer and building official.
U-factor figures use imperial Btu/(h ft2 F) unless another unit is stated; metric values use W/(m2 K). Uf describes the frame, Ug the glass, and Uw the whole window. SHGC and ER are dimensionless. Converting units does not establish certification or Canadian code acceptance.
Canadian orders use DAP to the agreed named place, with the Canadian buyer as importer of record. Import charges, unloading and local installation need their own confirmed scope. Site access and remote delivery require individual review.
Overview
What makes the COR Vision Plus
stand out.

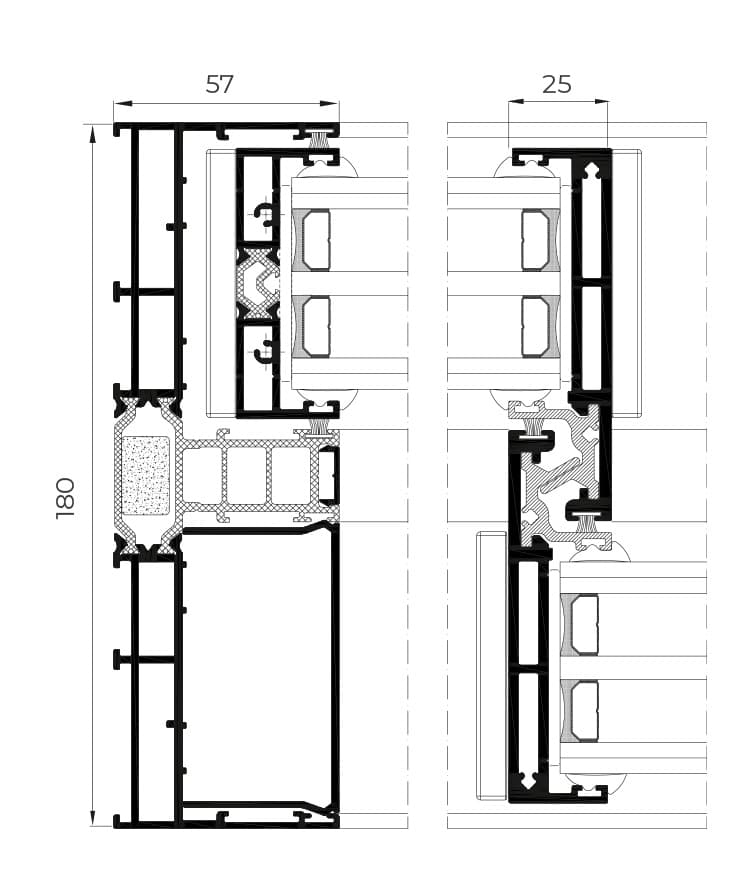

Cortizo COR Vision Plus is a large-format aluminum sliding door system with narrow sightlines and capacity for triple glazing. As an independent agent, I source doors built on this system for projects in the US and Canada. Individual leaves can reach 13 feet 1 inch in width or height, subject to a maximum glazed area of 151 sq ft and configuration limits. Manual operation supports up to 882 lbs; motorized operation supports up to 1,543 lbs. A 2.24-inch (57 mm) lateral sightline and 0.79-0.98-inch (20-25 mm) central junction keep the frame slim. The 7.09-inch (180 mm) two-track frame or 10.94-inch (278 mm) three-track frame accepts glazing from 1.42 to 2.20 inches (36-56 mm). Recessed tracks, one to four tracks, and mullion-free 90-degree corners are available; threshold drainage needs to be detailed for the project.
Learn more about thermally broken aluminum technology or compare European aluminum system providers.
Key Highlights
- Leaves to 4,000 x 4,000 mm - 14 m2 of glass in a single panel
- 400 kg manual operation, 700 kg motorized
- 57 mm lateral sightline, 20-25 mm central junction, ~94 percent glass
- Glazing to 56 mm - triple units without a special order

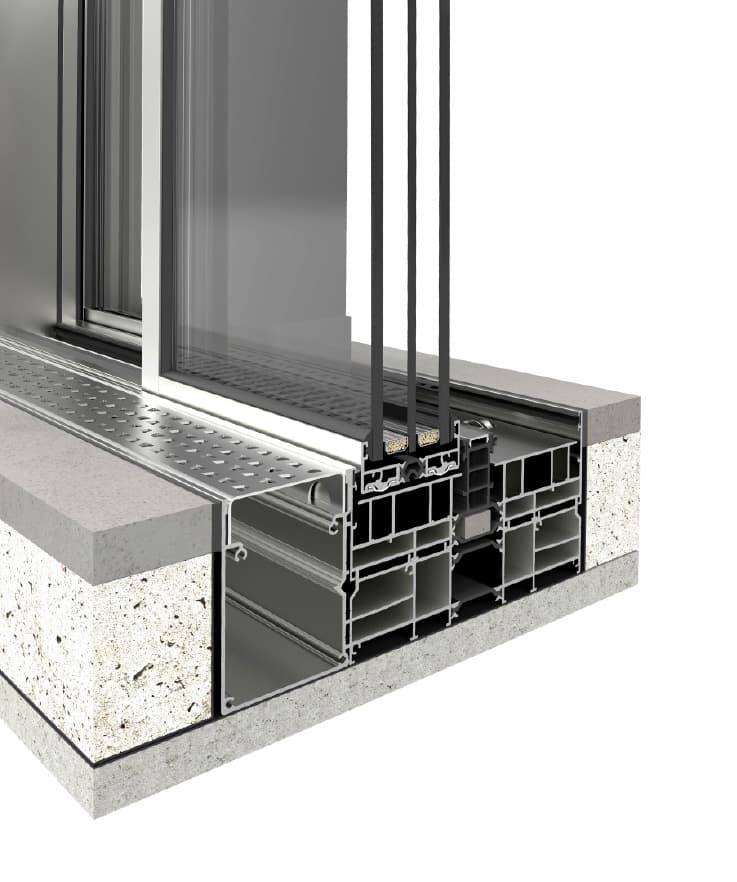

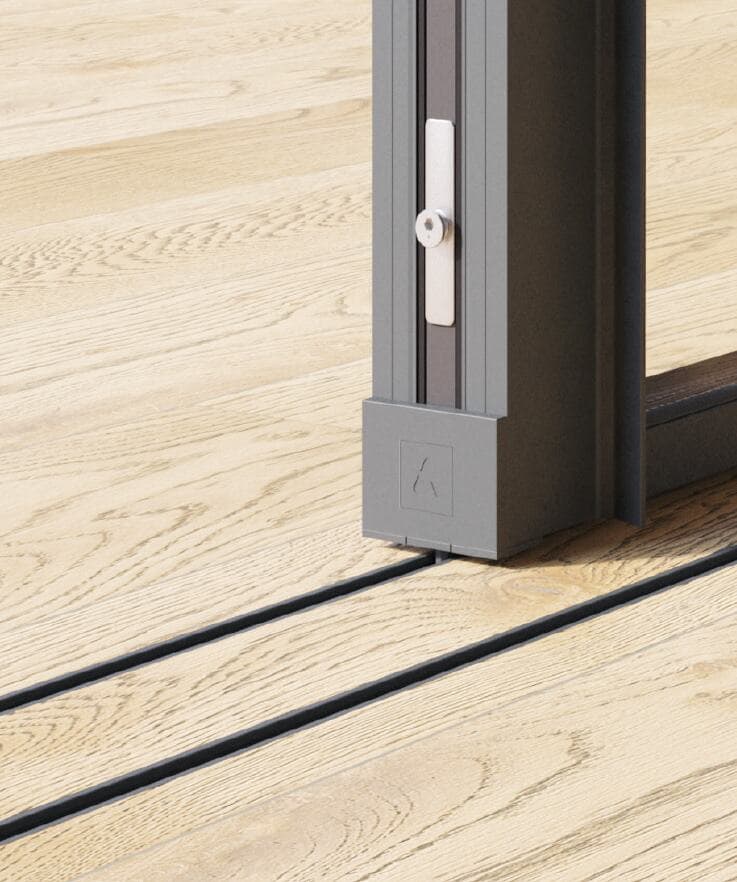

- Track can be recessed flush with the finished floor

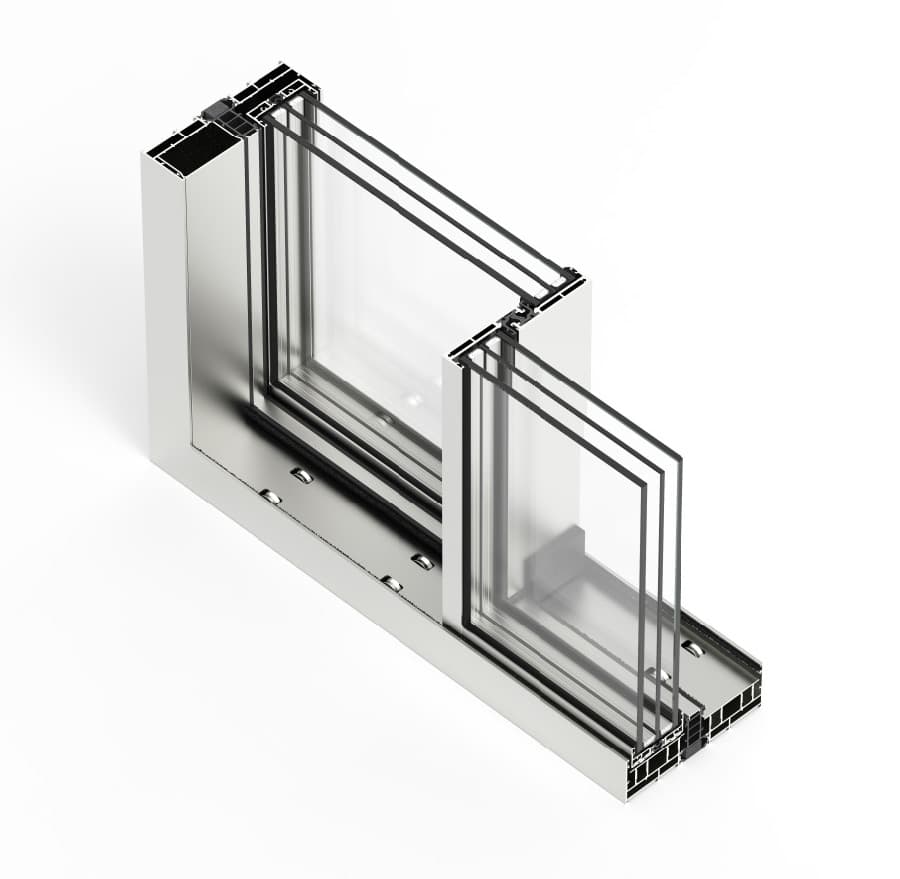

- Mullion-free 90-degree corner for glass-to-glass openings
Ideal For

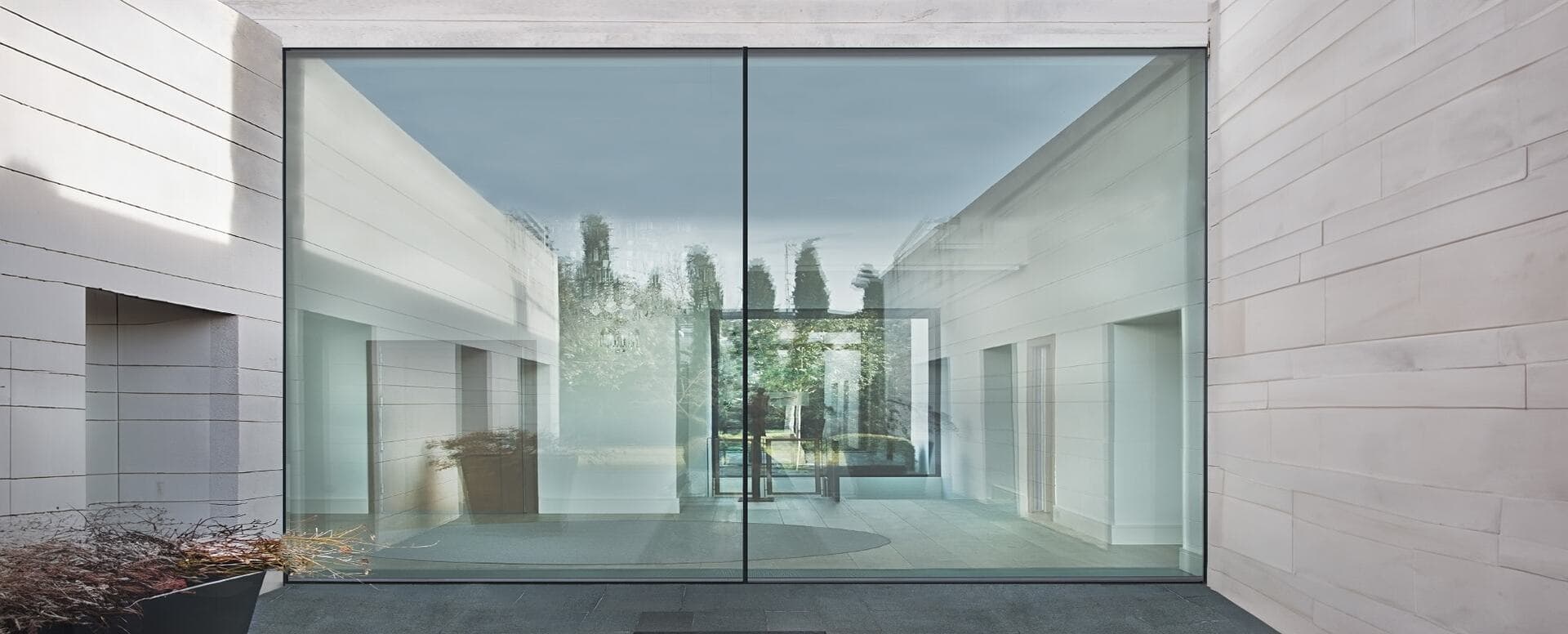

Indoor-outdoor living in high-end residential, view properties where the frame should disappear, and any opening too wide or too tall for a standard lift & slide.
Consider an Alternative When
If the opening is under about 8 feet wide, the COR Vision covers it for less. If the climate calls for the very best thermal numbers from a slider, the Reynaers MasterPatio HI+ reaches a 0.14 U-factor with heavier frames.
Technical specifications
Frame Depth
7.09" (180 mm) 2-track / 10.94" (278 mm) 3-track
Sash Depth
2.72" (69 mm)
Central Junction
0.79" - 0.98" (20-25 mm)
Lateral Sightline
2.24" (57 mm)
U-Factor (best)
0.16 (Uw 0.90)Units: The Uw, Uf, Ug or Ud figures shown alongside the imperial U-factor use W/(m2 K). These describe different parts of the assembly.
Glazing Range
1.42" - 2.20" (36-56 mm)
Max Sash
13' 1" x 13' 1" (4,000 x 4,000 mm), 151 sq ft
Max Sash Weight
882 lbs (400 kg) manual / 1,543 lbs (700 kg) motorized
Air Infiltration
Class 4 (EN 12207)
Water Resistance
Class 7A / 9A
Wind Load
Class C3 / C4
Acoustics
Up to 43 dB (Rw)
Configurations
1 to 4 tracks, mullion-free 90-degree corner
From this system to your opening schedule
Review the opening type, dimensions, glazing, finish and installation interface together. Provider references describe a system family; the documents for your project need to match the proposed assembly and local requirements.
