Panorama
Thermally efficient aluminum bifold with up to 8 panels and corner solutions.

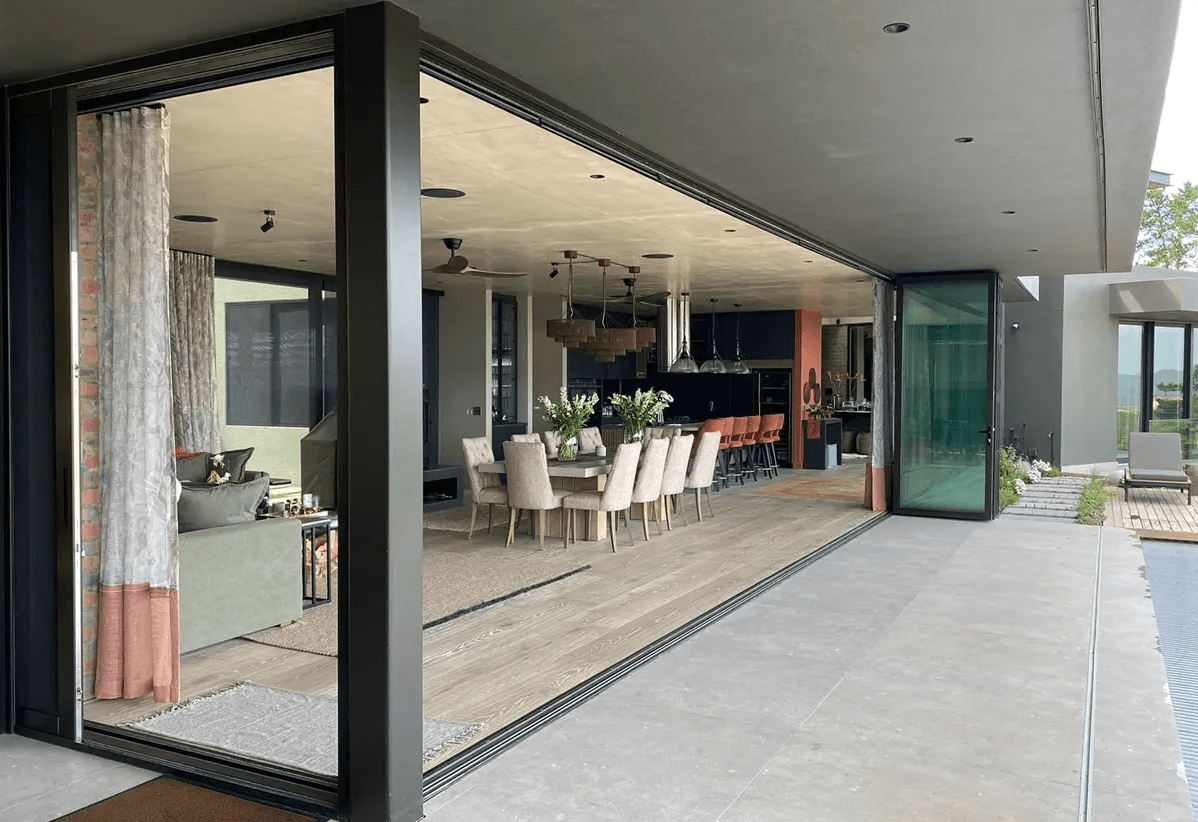

Application Example
Technical Specifications
Frame Depth
2.93" (74.5 mm)
U-Factor (best)
0.16 (Uw 0.89, i+ with triple)
Uf (frame)
DV: 1.68 / DV i+: 1.33 W/m²K
Max Glazing
1.97" (50 mm) triple pane
Max Panel Height
8.5 ft (2,600 mm)
Max Panel Weight
220 lbs (100 kg) per panel
Panel Count
2 to 8 panels (inward or outward)
Threshold
Flat with brush seal or sealed full-perimeter
Overview
What makes the Panorama
stand out.
Aliplast Panorama is a 3-chamber thermally insulated aluminum bifold door system designed to open entire walls to the outdoors. Panels fold in an accordion configuration - inward or outward - in layouts from 2+1 up to 8 panels total, including mullion-free corner solutions. Available in two thermal tiers: DV (standard, Uf 1.68) and DV i+ (enhanced insulation with polyamide thermal breaks, Uf 1.33). The i+ variant achieves whole-window values as low as Uw 0.89 with triple glazing - among the best in the bifold category. Integrated Winkhaus hardware includes hinges with bottom roller carriages for smooth folding, pull-handle hinges, and low-profile handles that minimize the footprint of the stacked panels. Two threshold options: a flat threshold with brush seal for near-flush indoor-outdoor transitions, or a sealed full-perimeter frame for maximum weather tightness. The slim 74.5 mm profile depth keeps sightlines narrow while accommodating glazing up to 50 mm. Finish options span the full RAL palette, wood-effect (Wood Colour Effect), stone-look (Loft View), anodized, and bi-color combinations.
Learn more about thermally broken aluminum technology or compare European aluminum system providers.
Key Highlights
- Two thermal tiers: DV (standard) and DV i+ (Uf 1.33, Uw down to 0.89)
- Up to 8 folding panels - inward or outward opening
- Mullion-free corner solutions for panoramic installations
- Integrated Winkhaus hardware with roller carriages for smooth folding
- Flat brush-seal threshold option for near-flush floor transitions
- Wide finish range: RAL, wood-effect, stone-look, anodized, bi-color
- Competitive pricing with strong thermal performance vs. premium alternatives
Ideal For
Patio-to-garden transitions, covered outdoor entertaining areas, kitchen pass-throughs, restaurants and hospitality venues needing wide openable walls. The i+ variant suits cold-climate projects. Corner solutions work well for L-shaped terraces.
Consider an Alternative When
If you need taller openings above 8.5 feet, the Aluprof MB-86 Fold Line HD reaches 10 feet and handles heavier panels. If you prefer sliding over folding, the Aliplast Ultraglide or Reynaers MasterPatio offer wider individual panels without stacking.
